Feature & Level Surveys built for accurate design and approval.

What it is

A feature and level survey is a detailed topographic plan of your site. Our licensed surveyors record spot levels, contours, existing buildings, fences, retaining walls, driveways, vegetation and visible service points (pits, hydrants, power poles), then deliver a CAD-ready plan referenced to AHD.

Why it matters

Architects, drafters and engineers rely on this plan as the single source of truth for your project. Without it, designs are based on assumptions — leading to costly redesigns, council rejections and on-site clashes during construction.

Our process

1. 1
   Brief & quote

   We confirm scope, datum, deliverables and turnaround in a fixed-price quote.
2. 2
   On-site survey

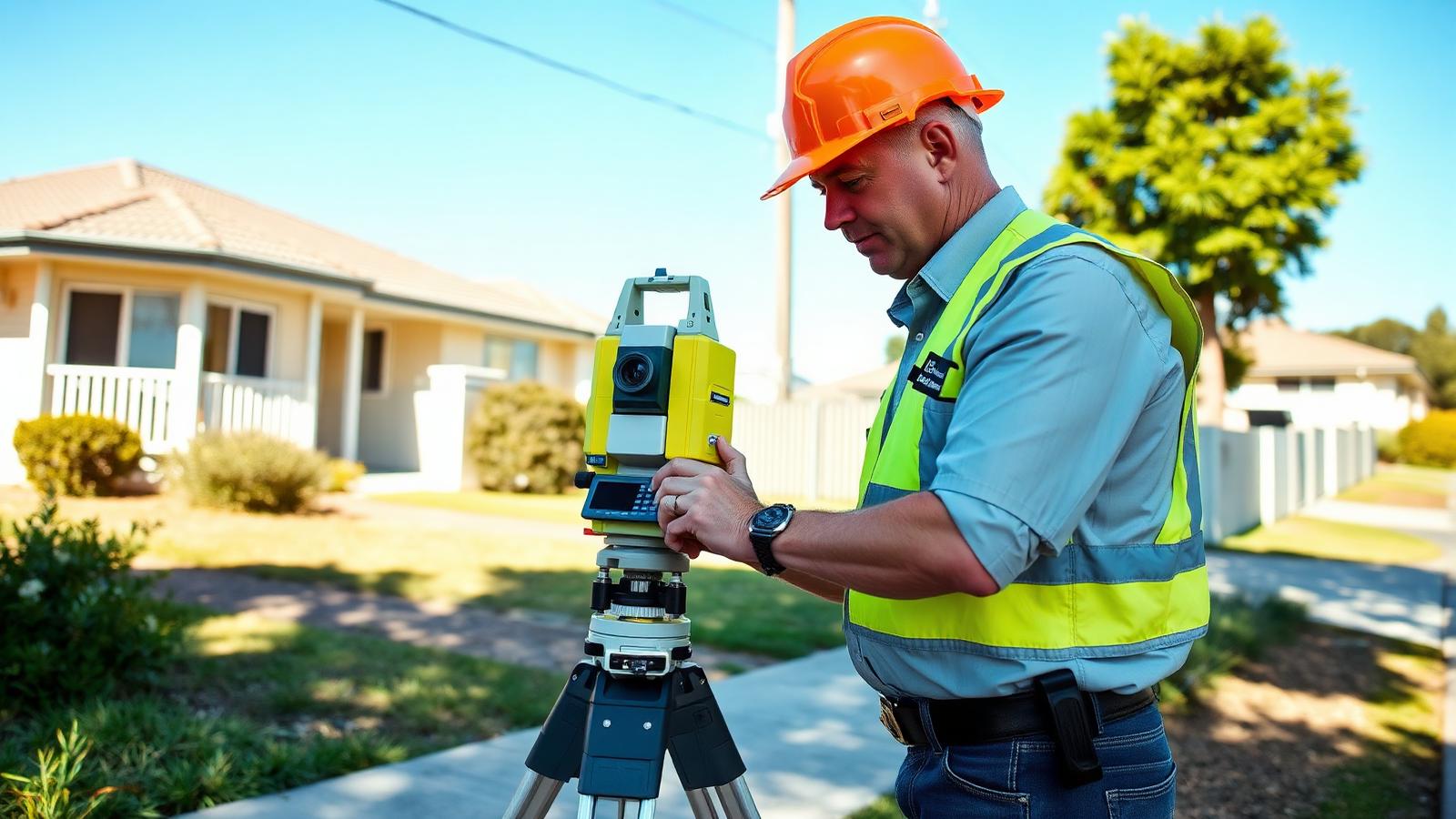

   Our crew picks up levels and features using GPS and total stations, typically within 5 days.
3. 3
   Drafting

   Data is drafted into a CAD plan with contours, levels, features and a title boundary overlay.
4. 4
   Delivery

   PDF and DWG files emailed direct, ready for your design team.

What you'll receive

• Scaled PDF plan
• AutoCAD DWG file
• Contours and spot levels (AHD)
• Boundary overlay from title
• Existing structures & features
• Visible services & utilities
